Die Casting Tooling Manufacturer | Precision Mold Design

A great casting does not begin when molten aluminum enters the machine. It begins months earlier, inside the tooling workshop, when engineers turn an idea into a precision mold.

At AlumCasting, we believe the mold is the heart of every die casting project. A well-designed die creates stable production, consistent quality and a longer manufacturing life.

Our tooling engineers work closely with customers from early product review to final production, helping transform complex designs into reliable cast components.

Discuss Your Tooling Project

Why Die Casting Tooling Determines Final Part Quality

Many people see the final aluminum casting. They rarely see the thousands of engineering decisions hidden behind it.

The cooling channels inside the mold. The runner system controlling metal flow. The venting design removing trapped air. The machining allowance planned for later processing.

Every detail affects the final component.

A poor tooling design can create years of production problems: porosity, short shots, uneven filling, premature mold wear, and unstable dimensions.

A professional tooling partner does not simply manufacture a mold. They prevent problems before production begins.

Our Die Casting Mold Design Approach

1. DFM Engineering Review

Before tooling starts, our engineers analyze part geometry, wall thickness, draft angles and casting requirements.

2. Mold Flow Consideration

Metal filling behavior, cooling efficiency and potential defect areas are considered during mold development.

3. Production Optimization

The goal is not only to make the first casting. The goal is stable production thousands of cycles later.

Engineering Experience Behind Every Mold

Different products require different tooling strategies. An automotive structural component may require large dies and advanced cooling design. A precision industrial housing may require extremely tight dimensional control. An EV battery component may require special attention to sealing and internal quality.

Our tooling decisions are always connected to the final application. Because the best mold is not the most complicated one. It is the one that creates reliable parts efficiently.

Tooling for Aluminum and Magnesium Die Casting

AlumCasting supports tooling development for various lightweight manufacturing applications.

• Aluminum die casting molds for automotive and industrial components
• Magnesium die casting tooling for lightweight structures
• Semi-solid casting molds for advanced aluminum applications
• Production tooling for high-volume manufacturing

From Tooling Development to Complete Die Casting Production

A mold supplier and a casting manufacturer should not work as two separate companies.

The best results come when tooling engineers understand the complete manufacturing process: how the mold will run, how the aluminum flows, how the casting will be machined, and how the final customer will use the component.

At AlumCasting, tooling development is connected with:

Die Casting Production

Our tooling team works directly with production engineers to ensure molds are designed for stable high-pressure die casting. Aluminum Die Casting

Precision CNC Machining

Many castings require secondary machining. Tooling design considers machining allowance and final dimensional requirements. CNC Machining Services

Surface Finishing

Post-processing requirements are considered during product development to achieve the required appearance and protection. Surface Treatment (page deferred — not in Batch 1)

Quality Control Throughout Tooling and Production

A high-quality mold is only the beginning. The real test comes after thousands of production cycles.

To maintain consistency, AlumCasting combines tooling experience with advanced inspection technology.

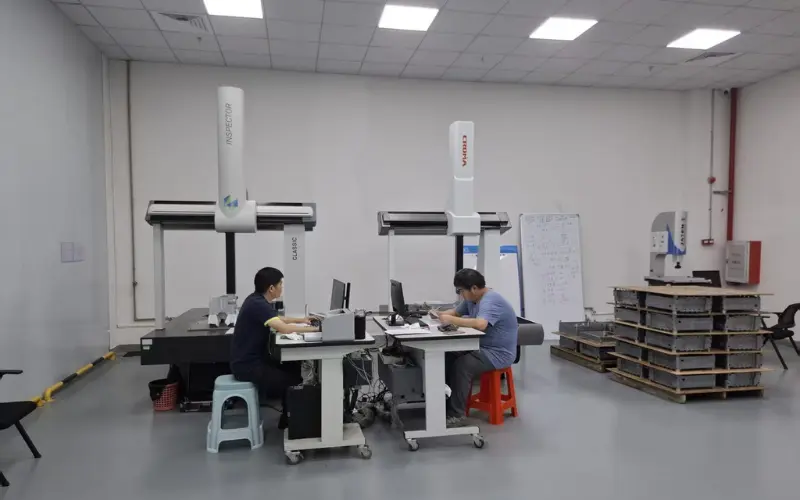

CMM Dimensional Inspection

Verifying critical dimensions and ensuring castings match customer drawings.

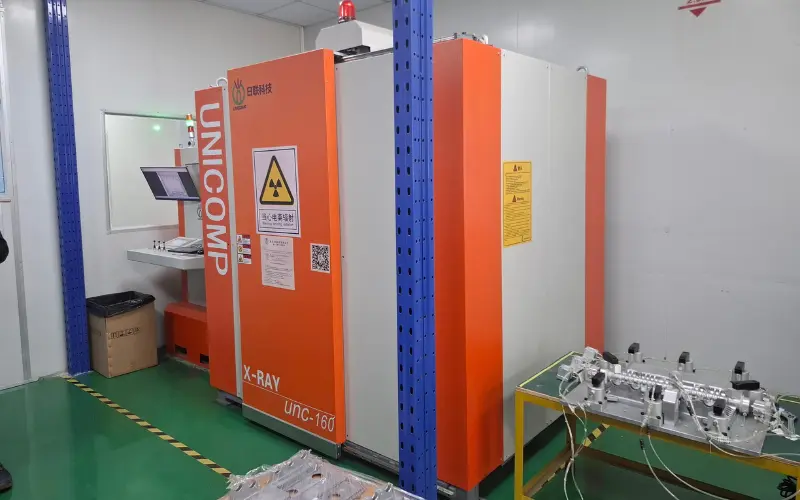

X-Ray Inspection

Detecting internal porosity and structural defects that cannot be seen visually.

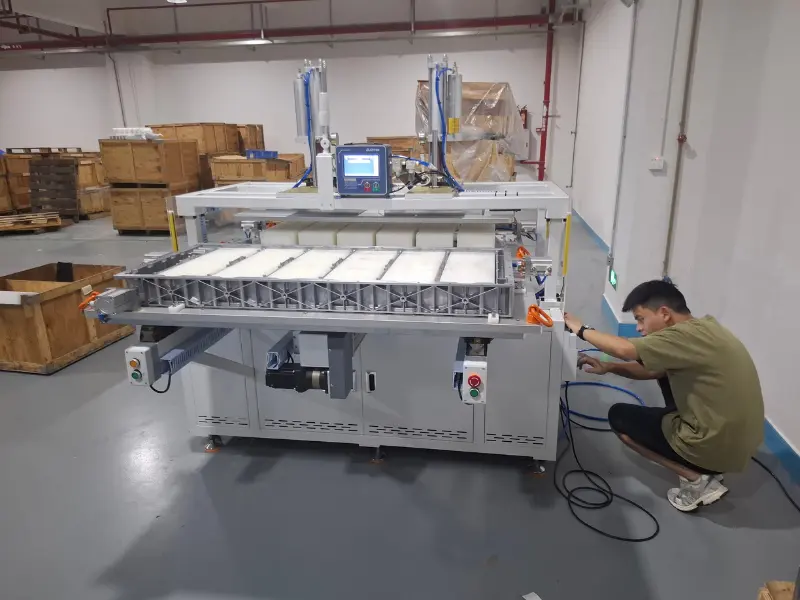

Leak Testing

Important for housings, covers and components requiring pressure sealing performance.

Tooling Quality Supported by Manufacturing Standards

Global customers need more than a mold supplier. They need a manufacturing partner who understands quality systems and production responsibility.

ISO 9001 Quality System

Structured quality processes support consistent tooling development and production control.

IATF 16949 Automotive Support

For automotive customers, tooling quality directly affects product reliability. Process discipline, traceability and continuous improvement are essential.

Engineering Documentation

Supporting technical communication through drawings, inspection reports and manufacturing records.

Advanced Lightweight Applications

Modern industries are constantly searching for lighter and stronger solutions. Tooling technology plays an important role in making these designs possible.

Magnesium Die Casting Tooling

Supporting lightweight automotive and industrial magnesium components. Magnesium Die Casting

Semi-Solid Casting Tooling

Advanced mold solutions for improved mechanical performance and reduced porosity. Semi-Solid Casting (page deferred — not in Batch 1)

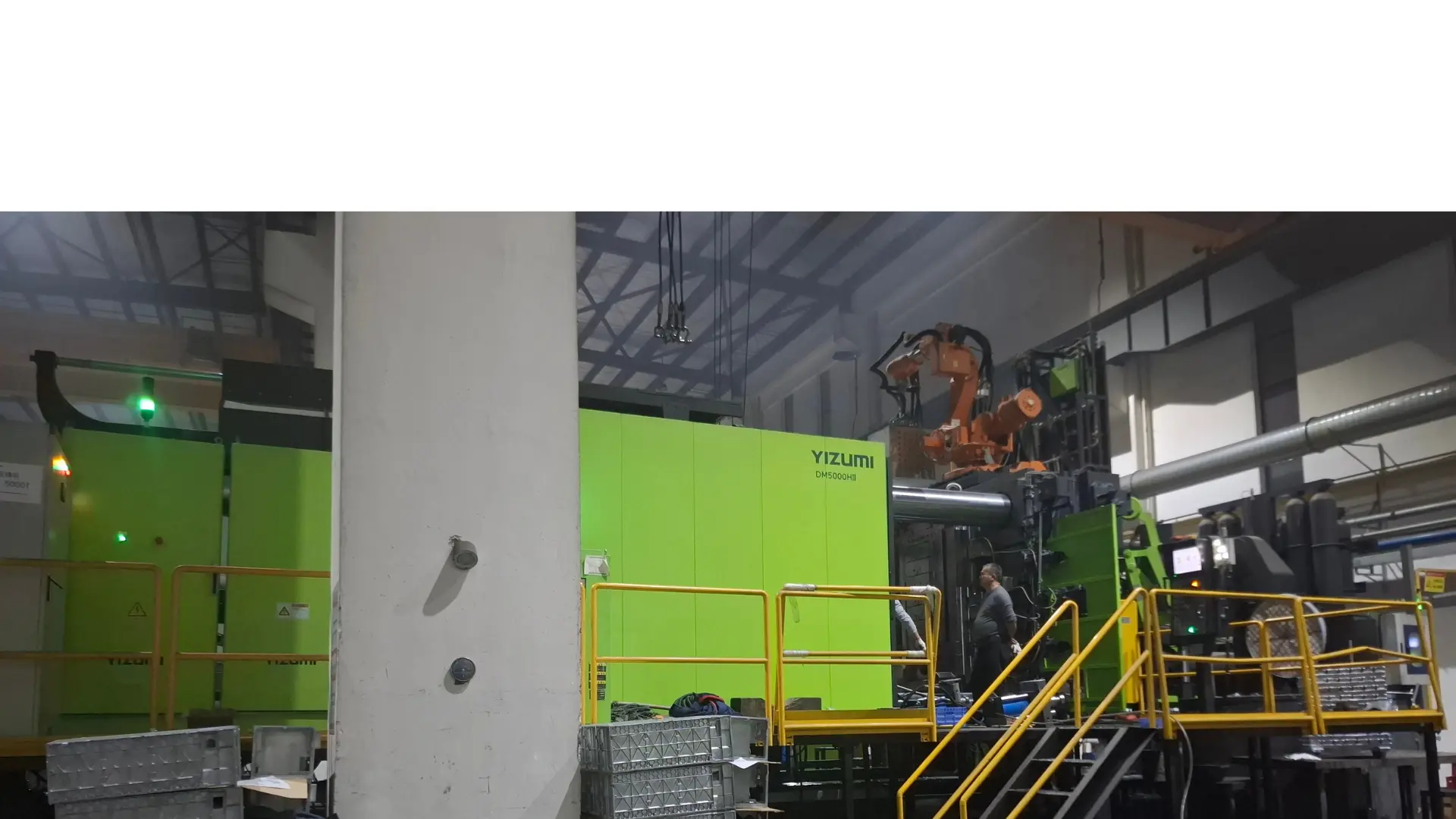

Aluminum Structural Parts

Large aluminum components requiring optimized mold design and production stability. Aluminum Die Casting

Frequently Asked Questions About Die Casting Tooling

How long does die casting tooling development take?

The timeline depends on part complexity, mold size and project requirements. A detailed engineering review helps determine the most efficient development schedule.

Can you modify existing die casting molds?

Yes. Our engineers can evaluate existing tooling issues and provide improvement suggestions for quality or production stability.

Do you provide tooling and casting production together?

Yes. AlumCasting provides integrated support from mold development, die casting production, CNC machining and final inspection.

Start Your Die Casting Tooling Project

Whether you are developing a new automotive component, EV structural part or industrial aluminum housing, our engineering team can help evaluate your tooling requirements.

Send us your drawings, 3D files or project information. We will review mold feasibility, manufacturing approach and potential optimization opportunities.

Request Tooling Engineering Review
